Specification

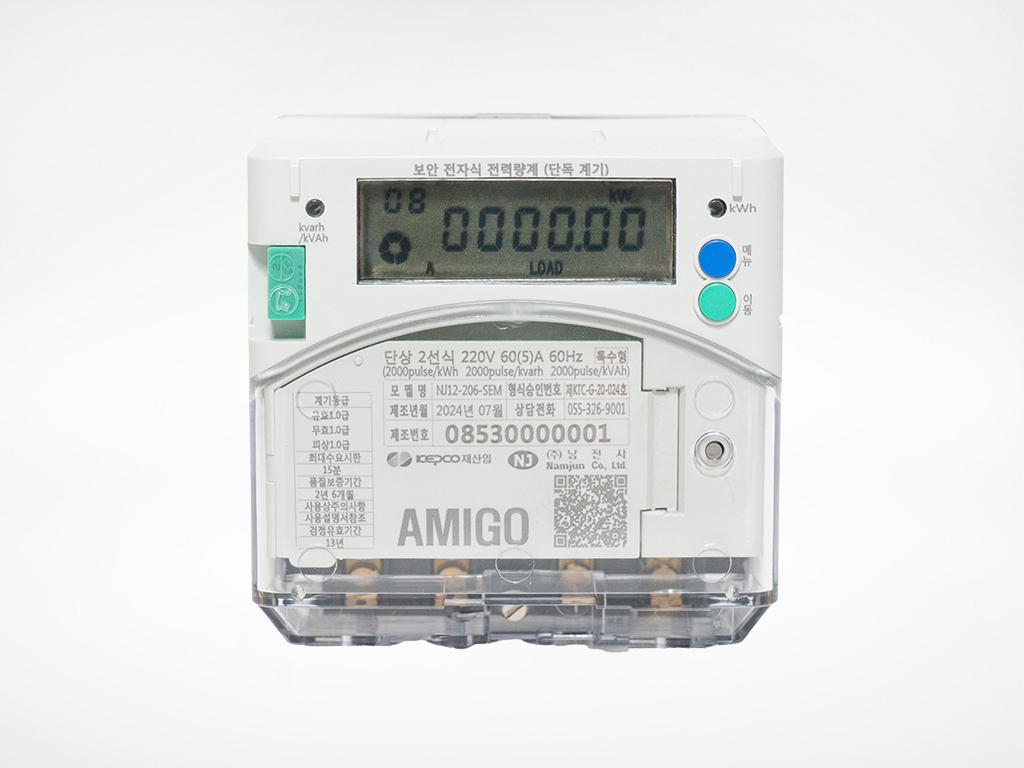

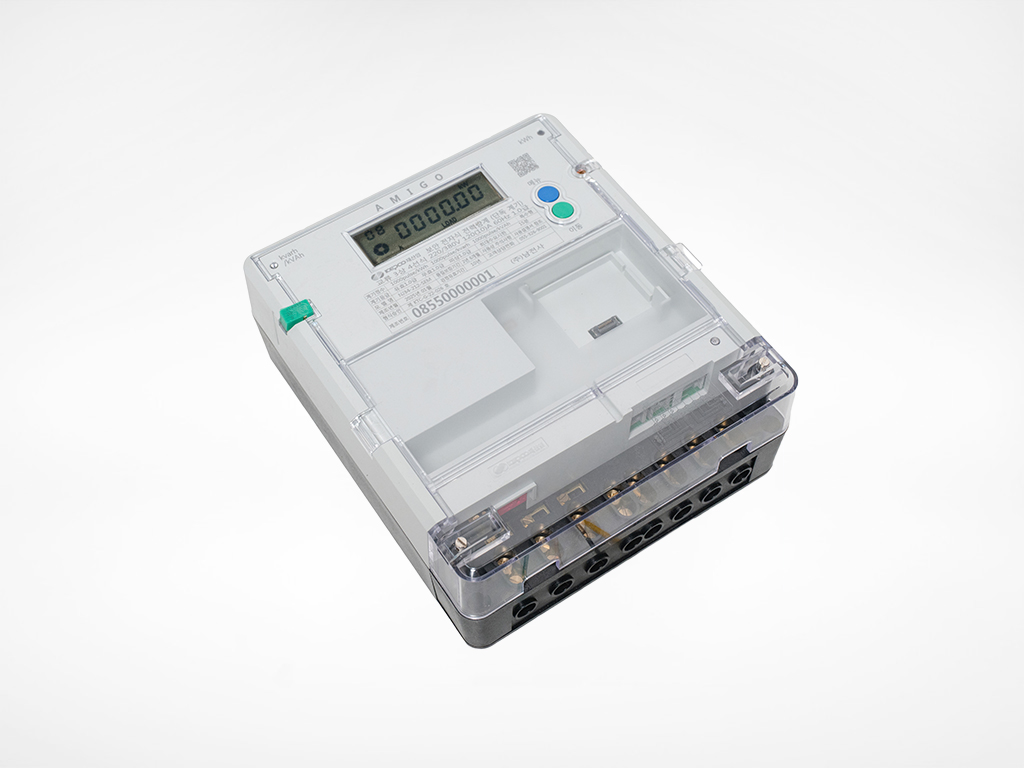

| Model Name | NJ12-206-SEM | NJ12-212-SEM | NJ34-212-SEM | NJ34-105-SEM |
|---|---|---|---|---|
| Service Type | 1P2W Standalone Meter | 1P2W Standalone Meter | 3P4W Standalone Meter | 3P4W CT Operated Meter |
| Voltage | 220V | 220V | 220/380V | 63.5/110 ~220/380V |
| Current | 60(5)A | 120(10)A | 120(10)A | 5(2.5)A |
| Frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Accuracy | Active 1.0 Reactive 1.0 | Active 1.0 Reactive 1.0 | Active 1.0 Reactive 1.0 | Active 0.5 Reactive 1.0 |
| Meter Constant | Active 2,000pulse/kWh Reactive 2,000pulse/kvarh |
Active 2,000pulse/kWh Reactive 2,000pulse/kvarh |
Active 1,000pulse/kWh Reactive 1,000pulse/kvarh |
Active 20,000pulse/kWh Reactive 20,000pulse/kvarh |
| Reference Table | Reference Table | Reference Table | ||
| Dimensions | Dimensions | Dimensions | Dimensions | Dimensions |
Features
-
Measures Active/Reactive Energy, Maximum Demand, and Power Factor
-
Built-in self-diagnosis function for detecting abnormal operation
-
Bidirectional, TOU (4-tier), and per-phase metering
-
Supports pluggable communication modem interface and built-in SUN modem
-
Supports seasonal and time-of-use (TOU) metering
-
Supports remote software updates via DLMS protocol
-
LP-1 and LP-2 for recording energy and instantaneous values
-
Embedded KCMVP Security Function
-
Built-in battery and supercap for backup power
