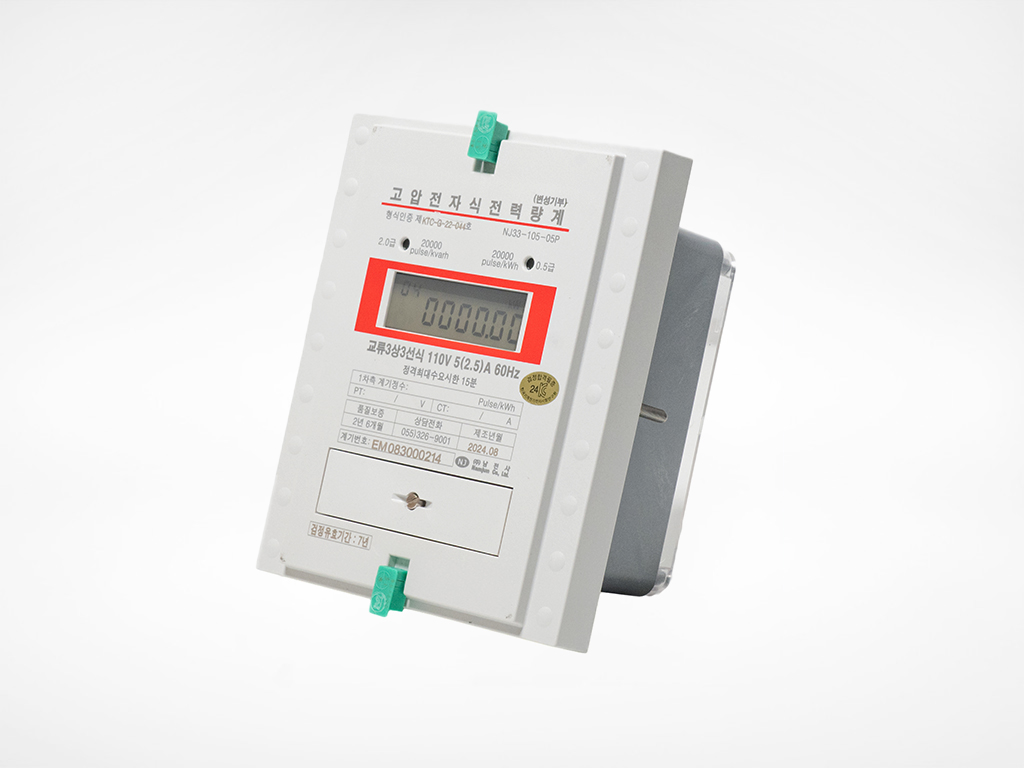

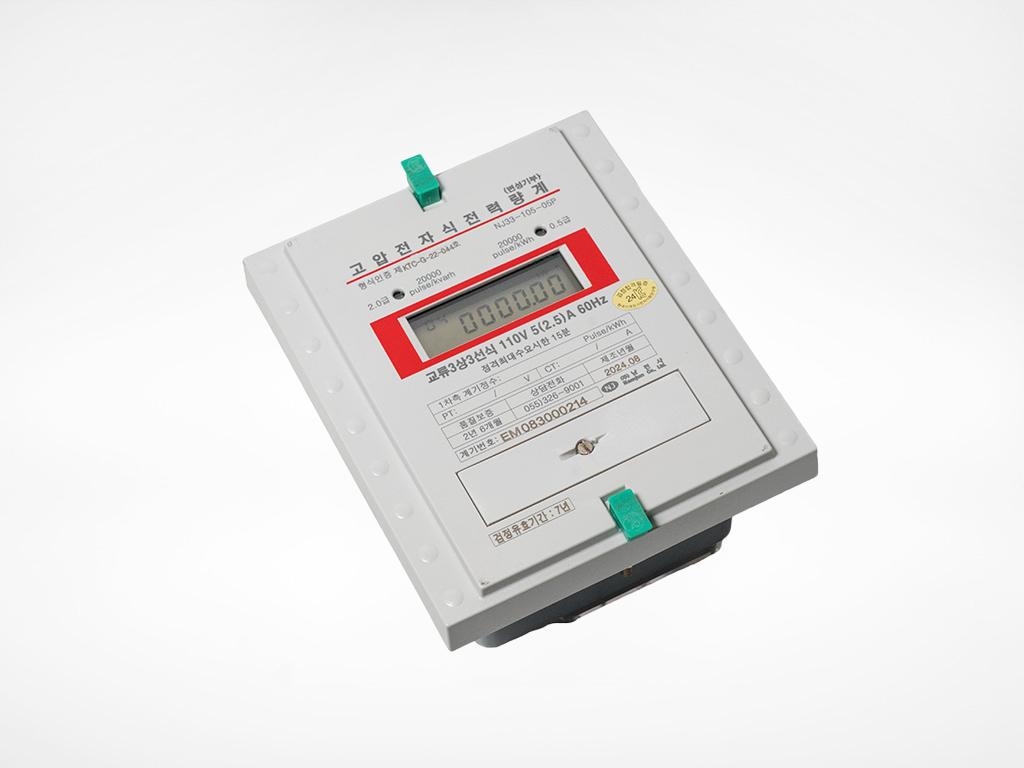

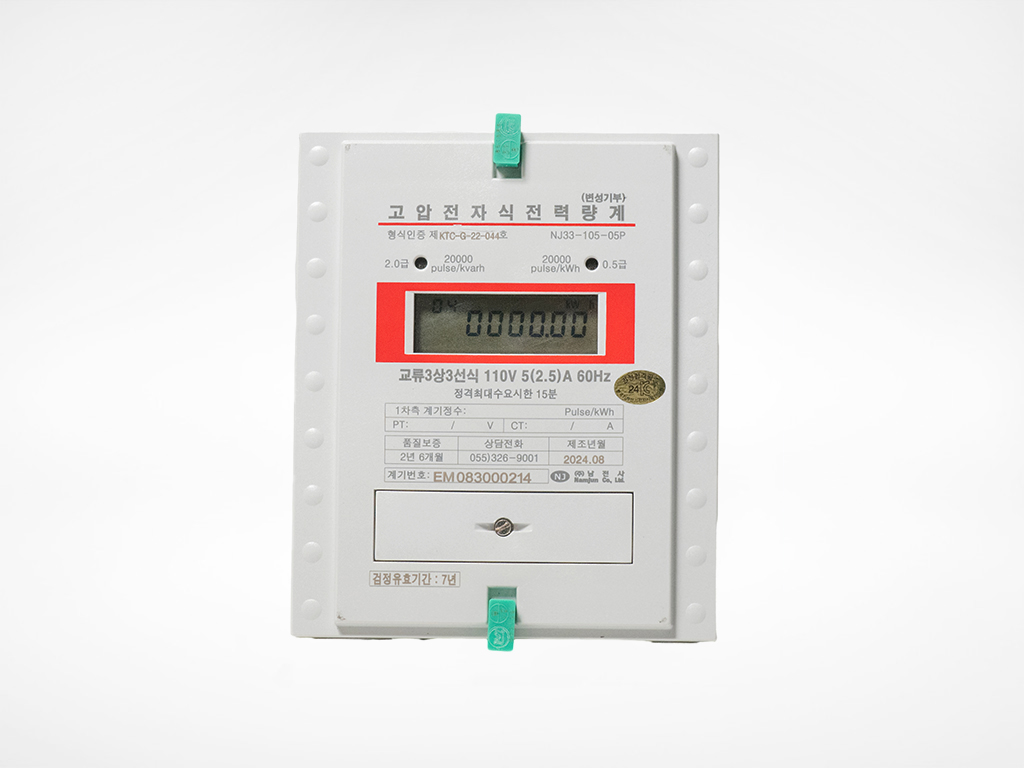

    Embedded-Type Meter for POSCO

    Model Name : NJ33-105-05P

    SPECIFICATION

    Model Name NJ33-105-05P
    Service Type 3P3W
    Voltage 110V
    Current 5(2.5)A
    Frequency 60Hz
    Accuracy 0.5
    Meter Constant Active 20,000 pulse/kWh Reactive 20,000 pulse/kvarh

    FEATURES

    • Measures Active/Reactive Energy, Maximum Demand, and Power Factor
    • Stores load profile (LP) data for up to 90 days
    • Equipped with a self-diagnostic function to detect memory errors, battery faults, and voltage phase loss.
    • Built-in battery allows data storage and real-time clock operation even during power outages
    • Applicable to remote metering via RS485 communication
