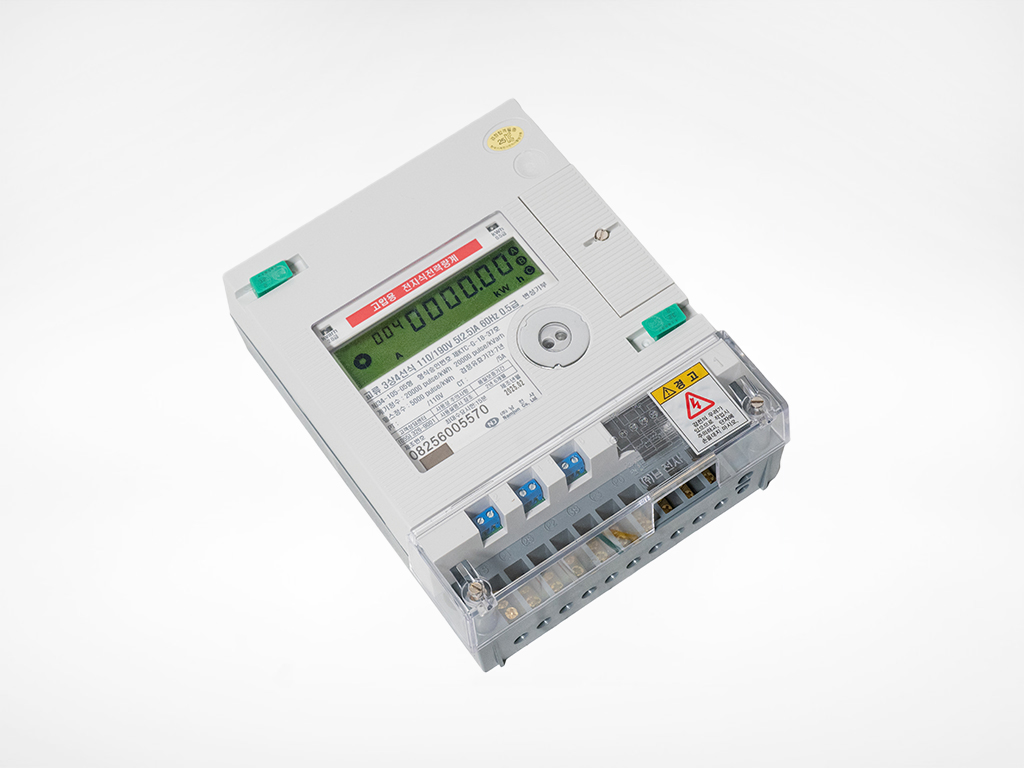

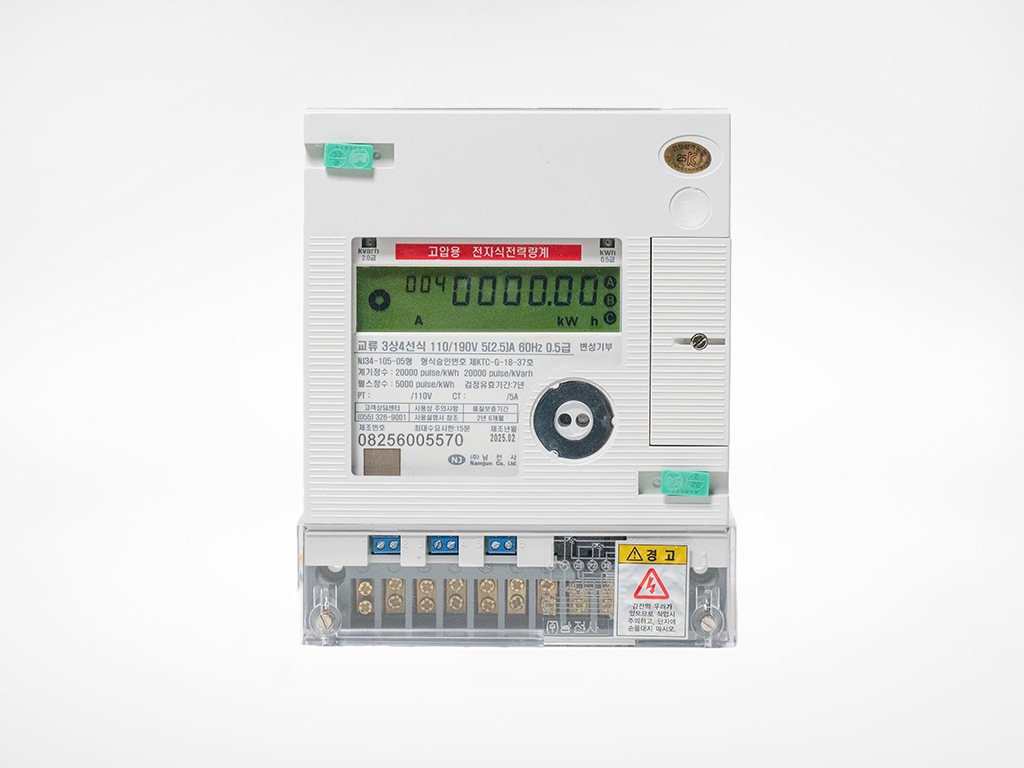

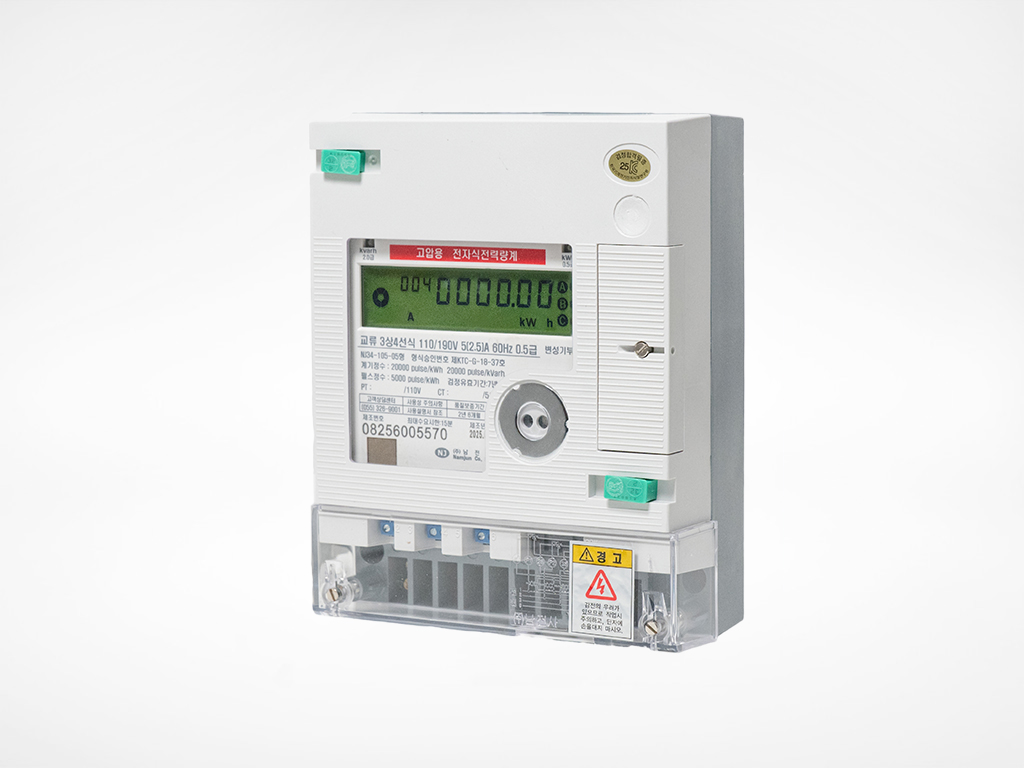

    High Voltage Meter

    Model Name : NJ34-105-05

    SPECIFICATION

    Model Name NJ34-105-05 NJ34-605-05 NJ33-105-05
    Service Type 3P 4W 3P 4W 3P 3W
    Voltage 110/190V 63.5/110V 110V
    Current 5(2.5)A 5(2.5)A 5(2.5)A
    Frequency 60Hz 60Hz 60Hz
    Accuracy 0.5 0.5 0.5
    Meter Constant 20,000 pulse/kWh 20,000 pulse/kWh 20,000 pulse/kWh

    FEATURES

    • Measures Active/Reactive Energy, Maximum Demand, and Power Factor
    • Supports time-of-use (TOU) metering
    • Stores load profile (LP) data for up to 90 days
    • Built-in battery preserves metering data and keeps the clock running during power outages
    • Equipped with a self-diagnosis function to detect memory errors, battery faults, and voltage loss
    • Primarily used for grid-connected solar power plants linked to KEPCO (Korea Electric Power Corporation)
