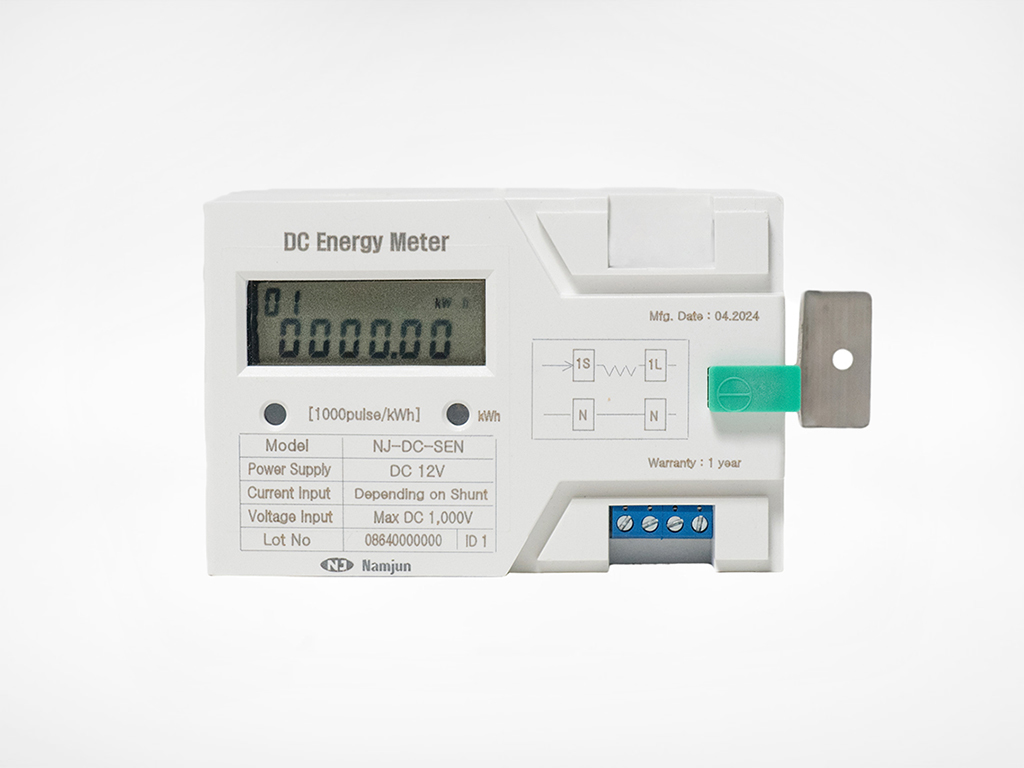

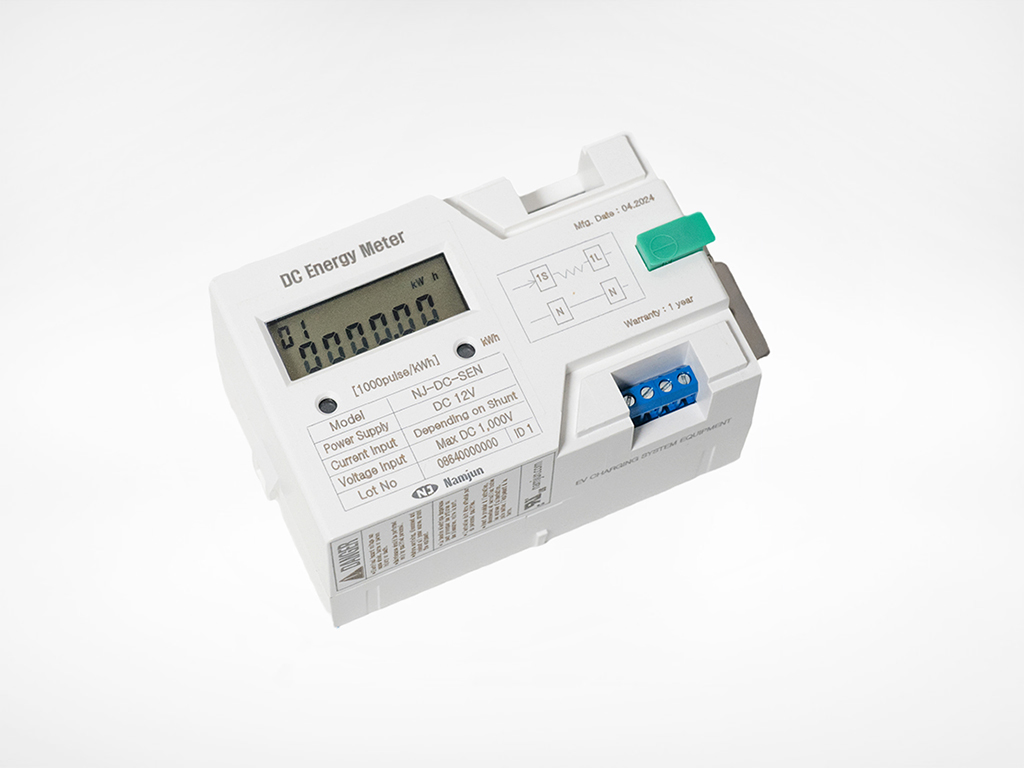

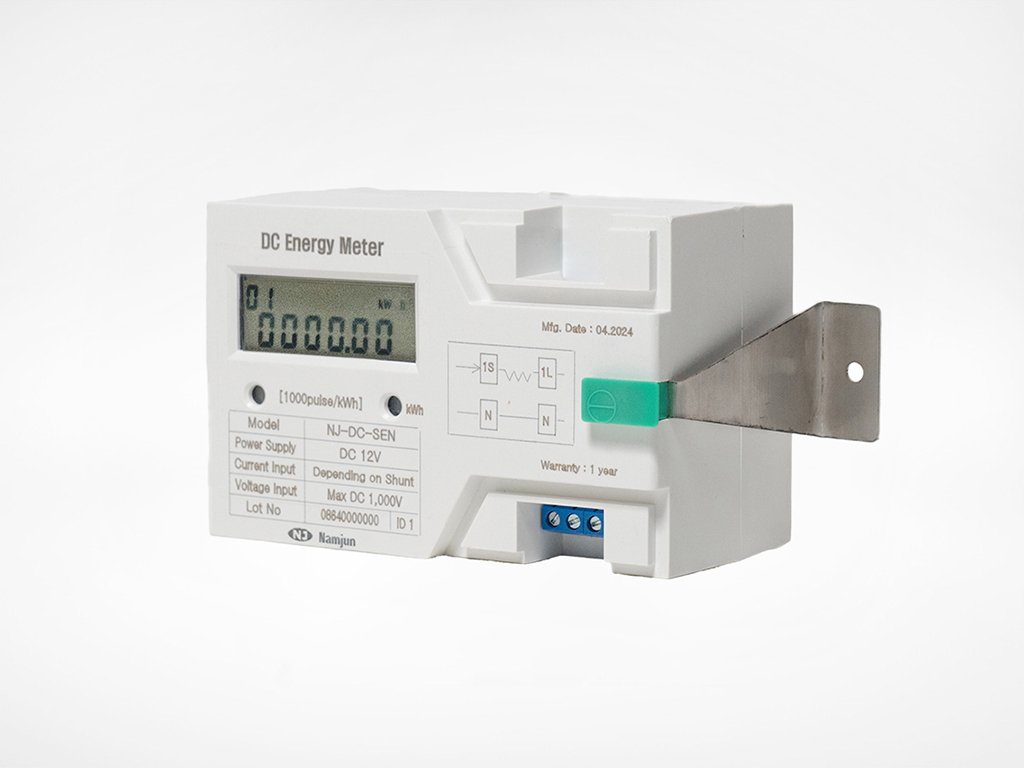

    External Shunt Type for DC Fast Charger

    Model Name : NJ-DC-SEN

    SPECIFICATION

    Model Name NJ-DC-SEN
    Service Type 1P2W
    Voltage Max DC 1,000V (Operating Voltage: DC+12V)
    Current Selectable by Current Rating
    Measurement Sensor External Shunt
    Accuracy 1.0
    Meter Constant 1,000 pulse/kWh
    Certification UL and MID certified for EV charger applications

    FEATURES

    • DC Energy Measurement
    • 0.0001 kWh
      (displayed during communication)
    • Supports bidirectional metering for V2G
    • Communication: RS-485 Protocol: Modbus
    • Operating Temperature : -35 ℃ ~ 55 ℃
    • UL and MID certified for EV charger applications
