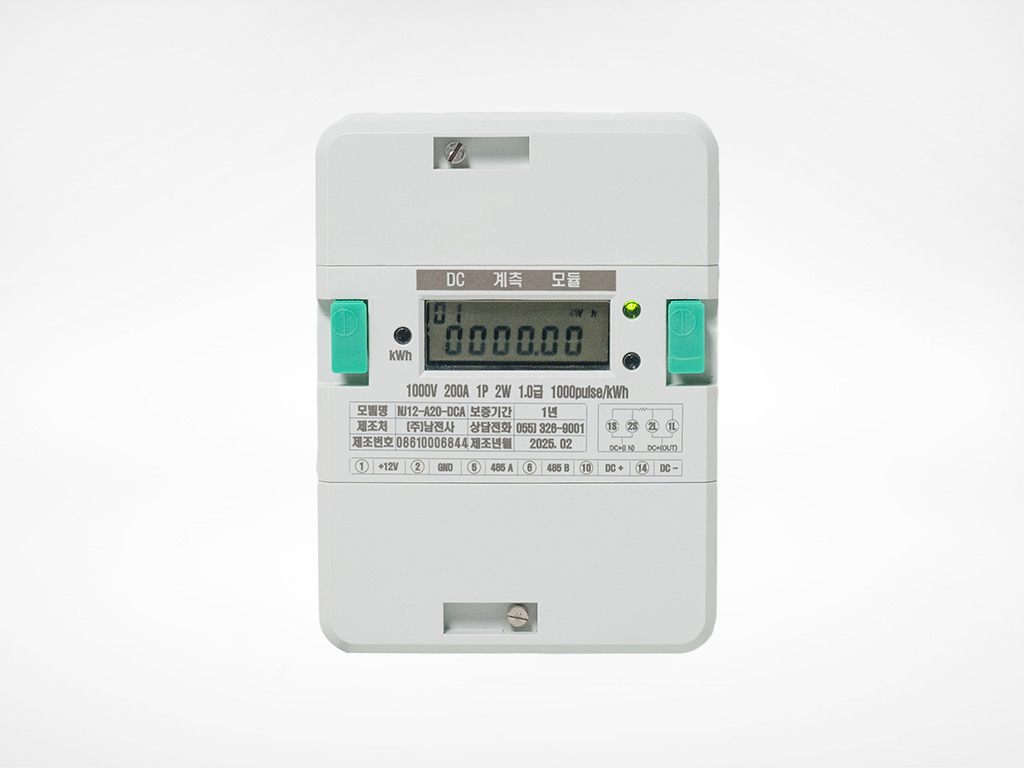

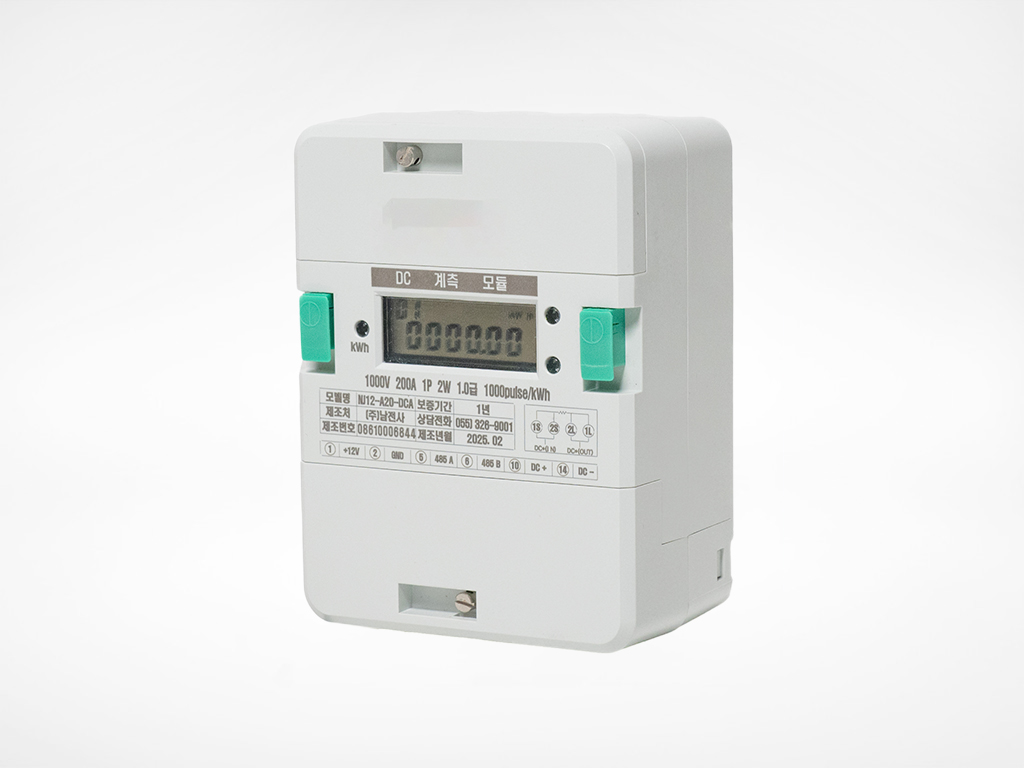

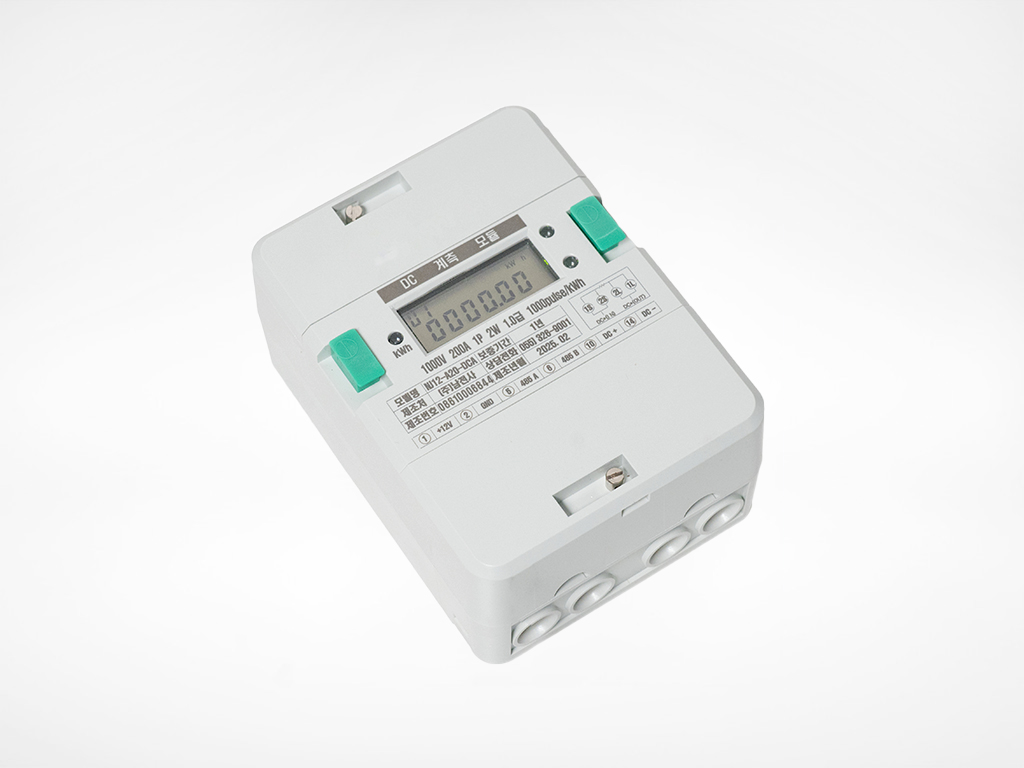

    DC Max 200A for Fast EV Charger

    Model Name : NJ12-A20-DCA

    SPECIFICATION

    Model Name NJ12-A20-DCA
    Service Type 1P2W
    Voltage Max DC 1,000V (Operating Voltage: DC+12V)
    Current 0 ~ 200A (Inrush Current: 400mA)
    Measurement Sensor Built-in Shunt
    Accuracy 1.0
    Meter Constant 1,000 pulse/kWh

    FEATURES

    • DC Energy Measurement
    • 0.0001 kWh
      (displayed during communication)
    • Supports bidirectional metering for V2G
    • Communication: RS-485 Protocol: Modbus
    • Operating Temperature: -35 ℃ to +55 ℃
