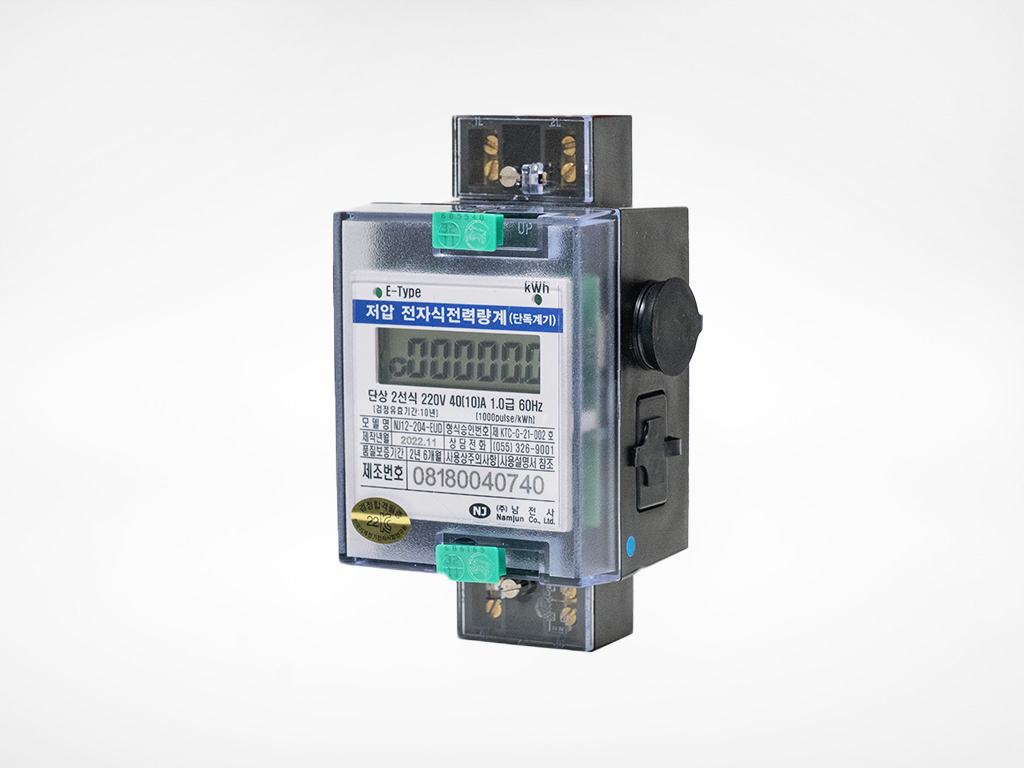

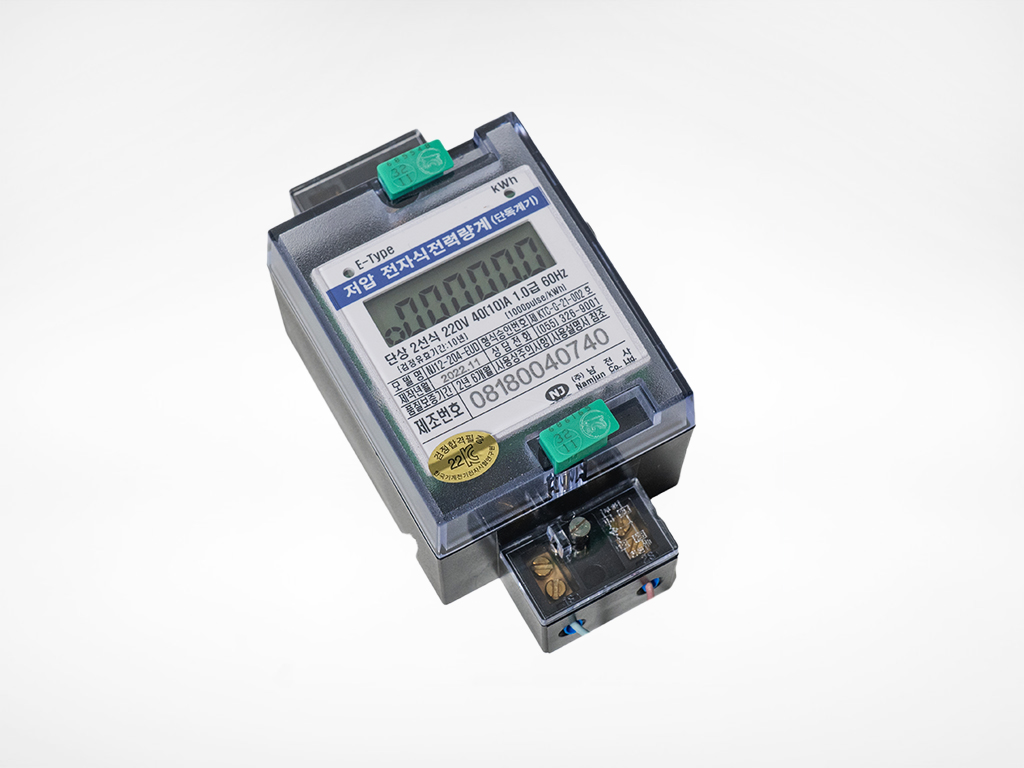

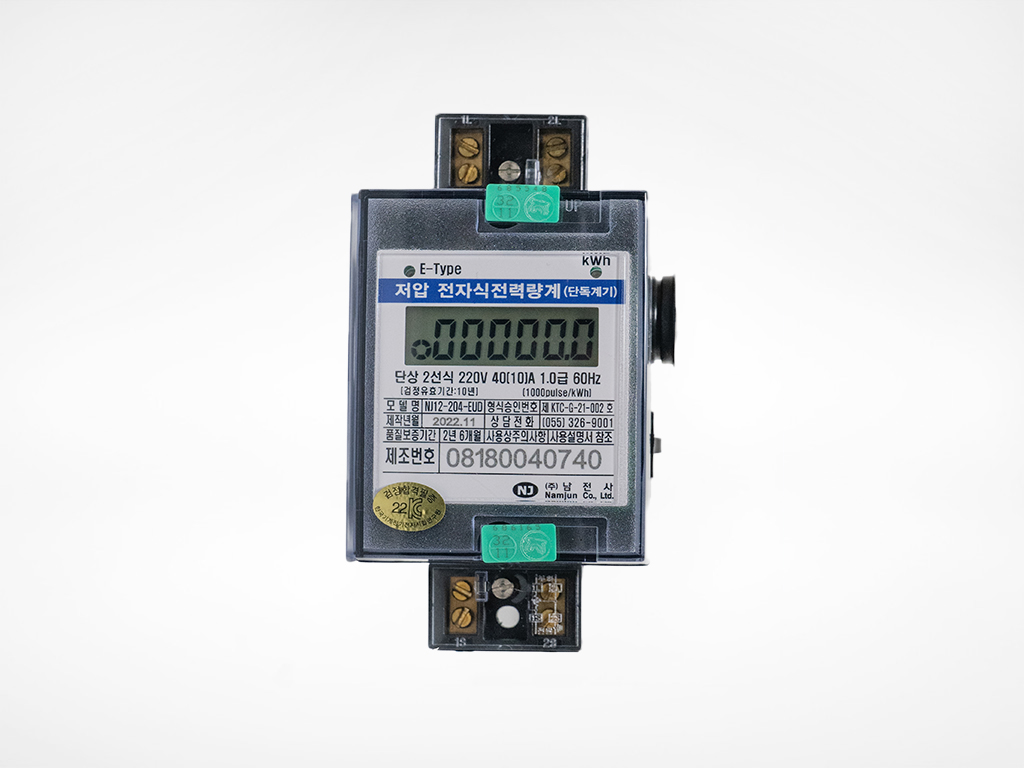

    AC40A for EV Charger

    Model Name : NJ12-204-EUD (Top-Bottom Type)

    SPECIFICATION

    Model Name NJ12-204-EUD (Top-Bottom Type)
    Service Type 1P2W
    Voltage 220V
    Current 40(10)A
    Frequency 60Hz
    Accuracy 1.0

    FEATURES

    • Measures active energy (kWh) with 5 whole digits and 1 decimal place
    • Stores metering data for up to 31 days with 1-hour recording intervals
    • Equipped with a self-diagnostic function to detect memory errors and reverse power flow errors
    • Equipped with RS485 communication for monitoring energy usage and other data, supporting both DLMS and MODBUS communication protocols.
