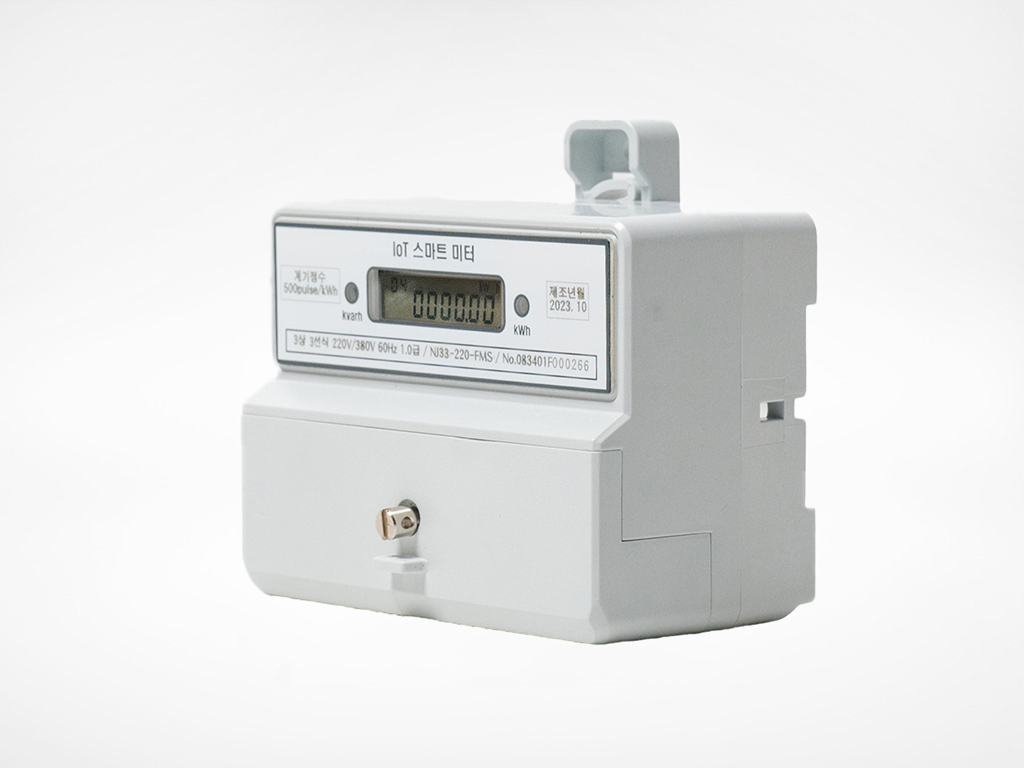

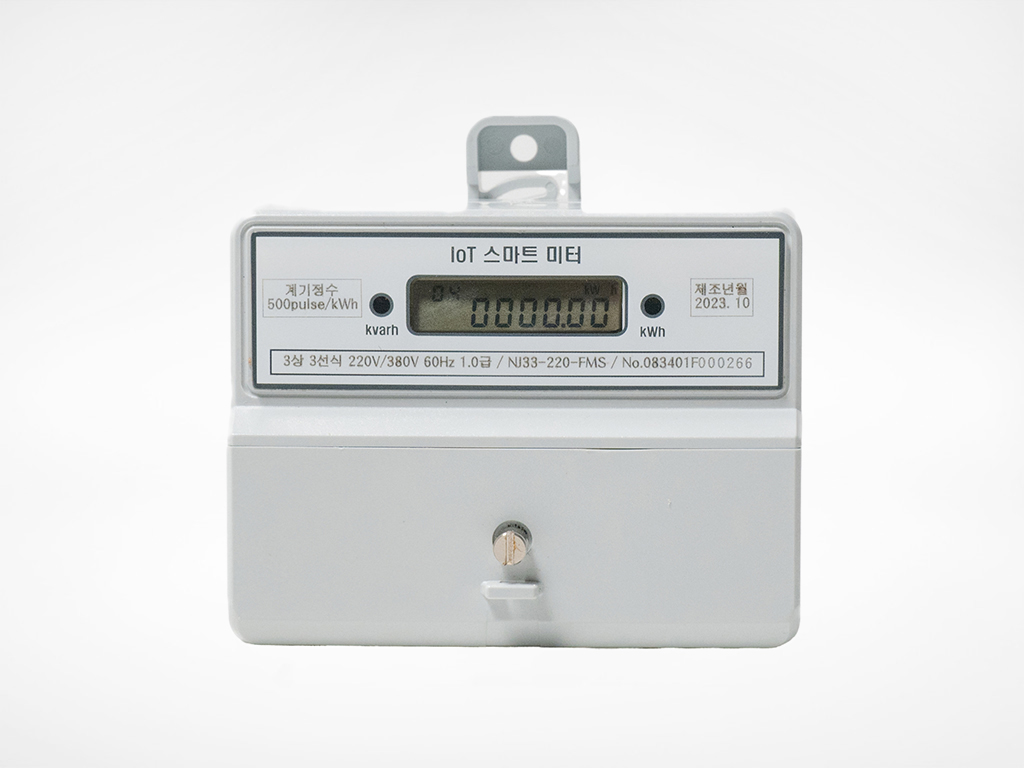

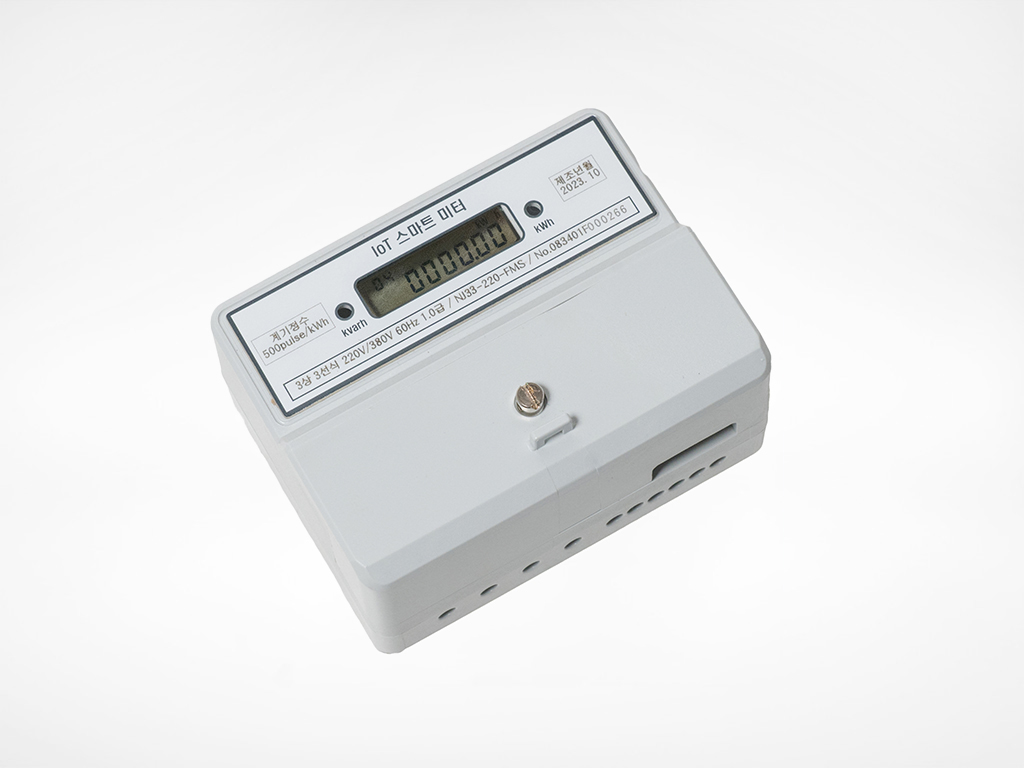

    IoT Smart Meter (3P3W Type)

    Model Name : NJ33-220-FMS

    SPECIFICATION

    Model Name NJ33-250-FMS NJ33-220-FMS NJ33-240-FMS NJ33-280-FMS
    Service Type 3P3W 3P3W 3P3W 3P3W
    Voltage 220V 220V 220V 220V
    Current 50A 200A 400A 800A
    Accuracy Active1.0 Reactive2.0 Active1.0 Reactive2.0 Active1.0 Reactive2.0 Active1.0 Reactive2.0
    Meter Constant 500 pulse/kWh 500 pulse/kWh 500 pulse/kWh 500 pulse/kWh

    FEATURES

    • In case of power failure, accumulated data is preserved and metering resumes normally upon recovery
    • Uses external detachable clamp-type CT
    • RS485 communication – capable of transmitting energy data to the upper-level metering server
    • Uses high-capacity CT
    • Capable of transmitting instantaneous values to the upper-level metering server for power quality monitoring
